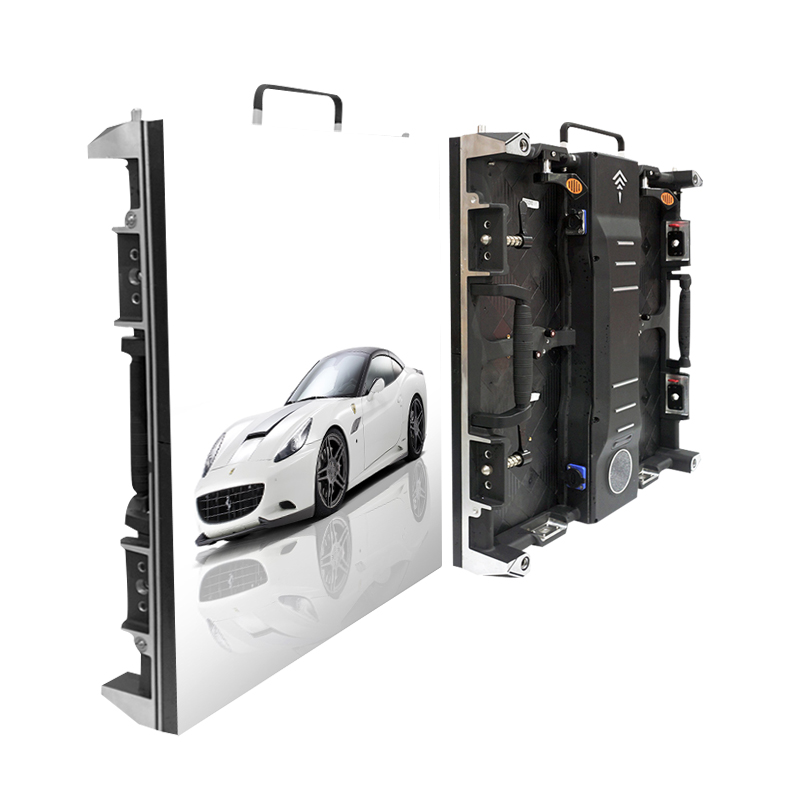

AOF-Front service P3.91 (Outdoor)

  • AOF-Front service P3.91 (Outdoor)
  • AOF-Front service P3.91 (Outdoor)
  • AOF-Front service P3.91 (Outdoor)
  • AOF-Front service P3.91 (Outdoor)
  • AOF-Front service P3.91 (Outdoor)
  • AOF-Front service P3.91 (Outdoor)
  • AOF-Front service P3.91 (Outdoor)
  • AOF-Front service P3.91 (Outdoor)

Atenti Fixed Outdoor Series are specially designed for outdoor and outdoor front service application. Available in pitch 3.91mm ,4.81mm, 4mm,  5mm, 6mm, 8mm, 10mm, 16mm.

Outdoor P3.91 P4.81 applications, which can be adapted in wall mounted installation.



Features:

1. All our outdoor products are guaranteed IP65 rating, high brightness & contrast.

2. Special and beautiful design of Die-cast aluminum cabinet with special, adjustable lock, the precision is less than 0.1mm

3. Special louver design allows outdoor daytime use & improves contrast without sacrifice viewing angle,and ideal solution for any indoor/outdoor applications.
4. Most advanced surface mount technology, the location & amount of paste are controlled and monitored by the machine, the nonconforming paste printing will be  ticked out before going to the next process, so the overall yield-rate are higher.

5. Standaring manufacturing process,ensure stability and consistency of the products.

6. Highest quality of PCBA material is used and all the PCB’s are heat treated for minimum 24hours before mounting of the SMD Led’s.


MODEL:

AOF-P3.91

VERSION


DESCRIPTION:

PH3.91 Outdoor full color   die cast - -500mmx500mm (Wall  mount)


Parameter

Specification

Lamp

LED Type

SMD1921

Module

Pixel Pitch(mm)

3.91mm

Drive Method

1/8

Driving IC

MBI5124 /   MBI 5153( Optional)

Module Size(mm)

250 x 250

Module Resolution(pixel)

64 x 64

Cabinet

Cabinet Size(mm)

500 x 500 x 90

Cabinet Display Resolution(pixel)

128 x 128

Cabinet Type and Material

Aluminum Die-cast

Cabinet WeightKg

≤8.5

Display



Pixel Density

65,536 pix/

Viewing Angle

H 120°V 12

Brightness

5500cd/

Color Depth

281   Trillion

Refresh Rate(Hz)

≥1920

Frame Rate(Hz)

≥50-60

Voltage(V)

AC   86~264V

Avg. Power Consumption

270W/

Max. Power Consumption

800W/

Service Access

 Front access (Rear access optional)

IP Grade F/R

IP65/63

Operating Temp/Humidity

-2050, 1090%RH

Storage Temp/Humidity

-2060, 1090%RH

Lifetime(Normal Temp)

≥100,000H

System Controller

Linsn,Nova

Compliant Standard

EMC, C.E, ROHS, UL, BIS
